FS-C8520

FS-C8520

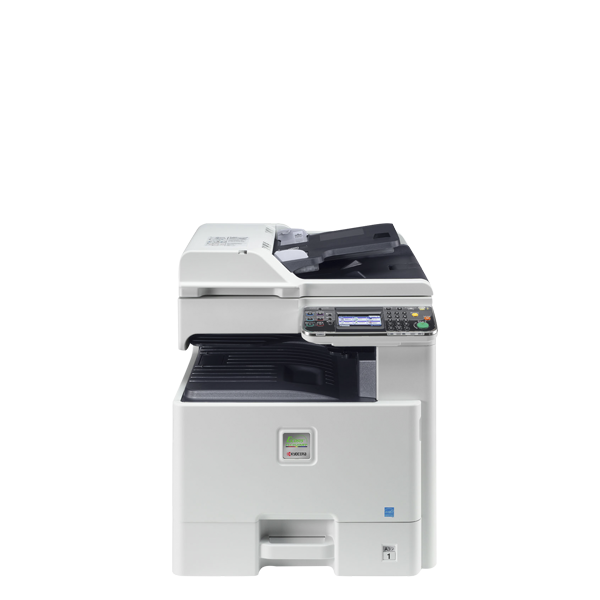

The Kyocera ECOSYS FS-C8520 provides the superior functionality and bright business color your customers need in a conveniently small device design. Kyocera's advanced, award-winning ECOSYS technology is well regarded as a cost-effective and highly reliable solution. The Kyocera FS-C8520 assures that your most critical document imaging demands are satisfied budget friendly and virtually worry-free.

Key Features

  • Up to 20/10 A4/A3 pages per minute in colour and b/w
  • Minimum installation and operation requirements
  • Easy to use colour touch panel with wizard style navigation
  • Low power consumption for energy saving
  • Long-life components provide unprecedented efficiency and reliability
  • HyPAS™ solution platform enables powerful customisation
General
General Type
Colour Multifunctional for A4/A3 Format
Technology
KYOCERA ECOSYS, COLOUR Laser HyPAS™ solution platform
Engine speed
Up to 20/10 pages A4/A3 per minute in colour and b/w
Resolution
600 x 600 dpi, multi-bit technology for print quality of 9,600 dpi equivalent x 600 dpi
Warm-up time
Approx. 55 seconds or less from power on
Time to first print
Approx. 11 seconds or less in b/w, 14 seconds or less in colour
Time to first copy
Approx. 11.7 seconds or less in b/w, 13.6 seconds or less in colour
Dimensions (W x D x H)
590 x 590 x 748 mm (with Document processor)
Weight
Approx. 80 kg including toner container
Power consumption
Sleep-mode: 0.9 W, Ready-mode: 121 W, Copying/Printing: 557 W
Power source
AC 220 ~ 240 V, 50/60 Hz
Noise (ISO 7779)
Noise (sound pressure level: ISO 7779/ISO 9296) Stand-by: 35 dB(A), Copying/Printing: 47 dB(A) in b/w
Safety standards
TÜV/GS, CE - This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
General memory
1,536 MB, max. 2,048 MB

Paper Handling
Input capacity
100-sheet multi-purpose tray, 60–256 g/m², A3, A4, A5, A6, B5, Letter, Legal, Folio, envelopes, Custom (98 x 148 to 297 x 432 mm) 500-sheet universal paper cassette, 60–256 g/m², A3, A4, A5, B5, Letter, Legal, Folio
Max. input capacity with options
1,600 sheets
Duplex unit
Duplex as standard supports 60–220 g/m²
Max. output capacity
Max. 280 sheets; 250 sheets face-down (main Tray), plus 30 sheets (job separator tray)
Document processor
Reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)
General paper handling
All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

Print
Processor
PowerPC 464 - 800 MHz
Controller language
PRESCRIBE
Emulations
PCL 6 (5c/XL), KPDL3 (Postscript 3 compatible), PDF Direct print, XPS Direct print
Fonts
93 outline fonts (PCL 6, KPDL3) + 8 (Windows Vista), 1 bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Integrated Accounting
100 department codes
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print
Applicable OS
All current Windows operating systems, MAC OS X Version 10.4 or higher, Unix, Linux as well as other operating systems on request.

Copy
Max. original size
A3/Ledger
Digital copy features
Scan-once-copy-many, electronic sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through
Exposure modes
Auto, manual: 7 steps
Preset magnification ratios
5 Reductions/5 Enlargements
Zoom range
25 - 400 % in 1% steps
Continuous copy
1-9,999
Image adjustments
Text, photo, text + photo, graphic/map, printer output

Scan
File type
TIFF, PDF, PDF/A, JPEG, XPS
Scan features
Integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder) at once
Original recognition
Text, photo, text + photo, optimised for OCR
Max. scan size
A3/Ledger
Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan-to-USB Host, Network TWAIN, WIA, WSD scan
Scan resolution
600, 400, 300, 200, 400 x 200, 200 x 100 dpi (256 greyscales per colour)
Scan speed
40 ipm (300dpi, A4, b/w, colour)

Fax
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.0 seconds (Quick Scanning, Bitmap)
Transmission speed
3 seconds or less
Scanning density
Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales
Max. original size
A3/Ledger
Compression method
JBIG, MMR, MR, MH
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Interfaces
Standard interface
USB 2.0 (Hi-Speed), USB Host 2.0, Fast Ethernet 10/100/1000Base-TX, slot for optional print server, slot for optional CompactFlash®-Card
