ECOSYS M6535CIDN

ECOSYS M6535CIDN

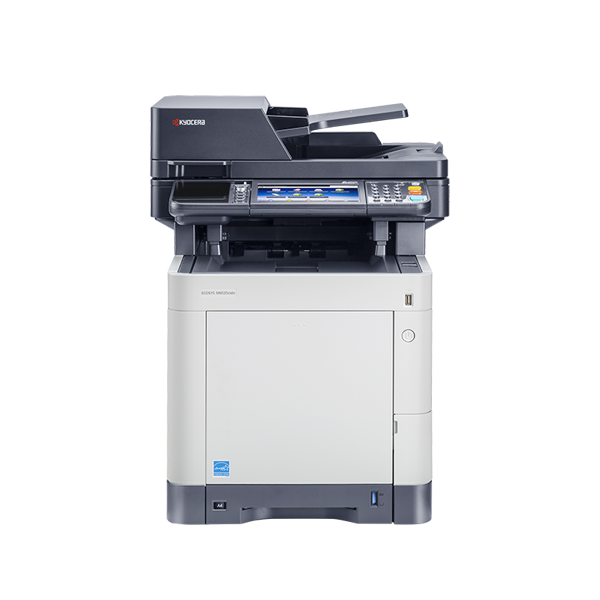

The ECOSYS M6535cidn color multifunctional printer elevates desktop power and flexibility to the next level. Superior output at speeds up to 37 pages per minute in black and color, plus productivity enhancing business applications power document imaging across the workgroup. Print, copy,scan and fax capabilities from a single device bring added convenience, streamlining hardware requirements in a small footprint. A tablet-like color touch screen adds effortless operation at the device while optional wireless printing and standard Apple AirPrint™ capabilities address the needs of a mobile workforce. The result is a document solution that is highly efficient yet still budget conscious.

Key Features

  • Up to 35 pages per minute in A4 in colour and b/w
  • High speed controller with 1 GHz CPU and 1 GB memory
  • High speed scan with up to 60ipm via 75-sheet reversing document processor
  • Double-sided print, copy, scan and fax functionality as standard
  • 7-inch full-colour touch panel with home screen provides ease of use
  • HyPAS solution platform enables powerful customisations
  • Mobile printing support including AirPrint, Mopria, KYOCERA Mobile Print
  • Exceptionally low printing costs in its class
General
General Type
Colour Multifunctional for A4 format
Technology
KYOCERA ECOSYS, Colour Laser, HyPAS solution platform
Engine speed
Up to 35 pages A4 per minute in colour and b/w
Resolution
600 x 600 dpi, multibit technology for print quality of up to 9,600 x 600 dpi (print), 600 x 600 dpi, 256 greyscales per colour (scan/copy)
Warm-up time
Approx. 25 seconds or less
Time to first print
Approx. 7/8.5 seconds or less in b/w / colour
Time to first copy
Approx. 9/11 seconds or less in b/w / colour
Dimensions (W x D x H)
475 x 558 x 616 mm
Weight
Approx. 35.4 kg including toner container
Power consumption
Copy / Print: 551 W, / 537 W, Ready-by: 73 W, Sleep-mode: 2.1 W
Power source
AC 220 ~ 240 V, 50/60 Hz
Noise (ISO 7779)
Noise (Sound pressure level: ISO 7779 / ISO 9296) Copy / Print in colour: 49.7 dB(A) LpA, Quiet mode in colour: 46.5 dB(A) LpA, Sleep-mode: Immeasurable low
Safety standards
TÜV/GS, CE - This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
General memory
Standard 1024 MB, max. 2048 MB

Paper Handling
Input capacity
100-sheet multi-purpose tray; 60 – 220 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm – 216 x 356 mm) 250-sheet universal cassette; 60 – 163 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148 – 216 x 356 mm)
Max. input capacity with options
1,850 sheets
Duplex unit
Duplex as standard supports 60 – 163 g/m²; A4, A5, B5, Letter, Legal
Max. output capacity
250 sheets face-down with paper full sensor
Document processor
Reversing document processor: 75-sheet, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
General paper handling
All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

Print
Processor
PowerPC 465S / 1 GHz
Controller language
PRESCRIBE IIc
Emulations
PCL 6 (5c/XL), KPDL 3 (PostScript 3 compatible), PDF Direct Print 1.7, XPS Direct Print
Fonts
93 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
Integrated Accounting
100 department codes
Features
Security features: IPSec, HTTPS, SNMPv3, IPPS, Encrypted PDF Direct Print, Private Print, Secure printing via SSL, POP over SSL, SMTP over SSL, Access control via 100 integrated department codes Data Security Kit (E) protects data on the optional SSD
Protocol
Mobile printing support: KYOCERA Mobile Print app for iOS and Android, AirPrint, Mopria
Applicable OS
All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request

Copy
Max. original size
A4/legal
Digital copy features
Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change, copy density control
Exposure modes
Auto, manual: 9 steps
Preset magnification ratios
7 Reductions/5 Enlargements
Zoom range
25 - 400 % in 1% steps
Continuous copy
1 - 999
Image adjustments
Text, Photo, Mix, Graphic/Map, Printer Output

Scan
Compression format
MMR/JPEG
File type
TIFF, PDF, PDF/A , high compression PDF, encrypted PDF, JPEG, XPS
Scan features
Integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once
Original recognition
Text + Photo, Photo, Text, Light Text/Fine Line, Text (optimized for OCR)
Max. scan size
A4 / legal
Scan functionalities
Scan-to-e-mail (SMTP over SSL), Scan-to-FTP (FTP over SSL), Scan-to-SMB, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)
Scan resolution
600, 400, 300, 200 dpi (256 grey scales per colour)
Scan speed
60 ipm (300 dpi, A4, b/w), 40 ipm (600 dpi, A4 b/w; 300 dpi, A4, colour)

Fax
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.5 seconds
Transmission speed
3 seconds or less
Scanning density
Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi, Halftone: 256 greyscales
Max. original size
A4 / legal
Compression method
JBIG, MMR, MR, MH
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Interfaces
Standard interface
USB 2.0 (Hi-Speed), 2 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/ 1000BaseT) Slot for optional internal print server or SSD hard disc Slot for optional SD/SDHC-Card

Warranty
Warranty
1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
