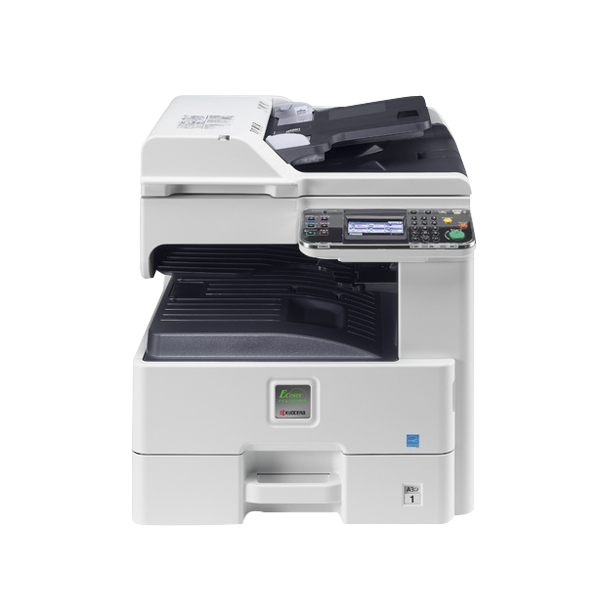

FS-6525MFP

FS-6525MFP

FS-6525MFP assures that your most critical document imaging demands are satisfied budget friendly and virtually worry-free. This device has been designed for advanced reliability while reducing the environmental impact and cutting printing costs.

Key Features

  • Up to 25/12 pages A4/A3 per minute
  • Time to first copy: 9.2 seconds or less
  • Professional print, copy, colour scan and fax functionality
  • Paper capacity up to 1,600 sheets and a range of paper-handling options
  • Easy to install and operate
  • Easy to use wizard-style navigation with full-colour touch panel
  • Low noise emissions, 0.9 W low power in sleep-mode
  • Compact, 360° all round stylish design to match any office
  • Long-life components provide unprecedented efficiency and reliability
  • HyPAS™solution platform enables powerful customizations
General
General Type
Monochrome multifunctional for A4/ A3 format
Technology
KYOCERA ECOSYS, Mono Laser, HyPAS™ solution platform
Engine speed
Up to 30/15 pages A4/A3 per minute (print/copy)
Resolution
600 x 600 dpi (print), 600 x 600 dpi (scan/copy)
Warm-up time
20 seconds or less
Time to first print
Approx. 8 seconds or less
Time to first copy
Approx. 9.2 seconds or less (DP), 7.8 seconds or less (Platen Cover)
Dimensions (W x D x H)
590x590x694 mm (Dimensions with document processor)
Weight
Approx. 52.2 kg including toner container
Power consumption
Sleep-mode: 0.9 W, Ready-mode: 114 W, Copying/Printing: 530 W
Power source
AC 220 ~ 240 V, 50/60 Hz
Noise (ISO 7779)
Copying/Printing: 47.1 dB(A), Stand-by: 27.1 dB(A)
Safety standards
TÜV/GS, CE - This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
General memory
1024 MB, max. 2,048 MB

Paper Handling
Input capacity
100-sheet multi-purpose tray, 45–256 g/m² (52–163 g/m² for larger than A4/Letter size), A3, A4, A5, A6, B5, Letter, Legal, Folio, envelopes, Custom (98 x 148 to 297 x 432 mm) 500-sheet universal paper cassette, 60–163 g/m², A3, A4, A5, B5, Letter, Legal, Folio
Max. input capacity with options
1,600 sheets
Duplex unit
Duplex as standard supports 60–163 g/m²
Max. output capacity
Max. 300 sheets: 250 sheets face-down (main tray), plus 50 sheets (job separator tray)
Document processor
Reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140 x 182 to 297 x 432mm)
General paper handling
All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

Print
Processor
PowerPC464 - 800 MHz
Controller language
PRESCRIBE IIe
Emulations
PCL 6 (5e/XL), KPDL3 (Postscript 3 compatible), PDF Direct print, XPS Direct print
Fonts
93 outline fonts (PCL 6, KPDL3) + 8 (Windows Vista), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Integrated Accounting
100 department codes
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print
Standard Interfaces
USB 2.0 (Hi-Speed), USB Host 2.0, Fast Ethernet 10/100/1000Base-TX, slot for optional print server, slot for optional CompactFlash®-Card
Resolution
600 x 600 dpi
Applicable OS
All current Windows operating systems, Mac OS X Version 10.4 or higher, UNIX LINUX, as well as other operating systems on request

Copy
Copy resolution
600 x 600 dpi
Max. original size
A3/Ledger
Digital copy features
Scan-once-copy-many, electronic sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through
Exposure modes
Auto, manual: 7 steps
Preset magnification ratios
5 Reductions/5 Enlargements
Zoom range
25 - 400 % in 1% steps
Continuous copy
1 - 999
Image adjustments
Text, Photo, Text + Photo, Graphic/Map, Copy/Printout

Scan
Compression format
MMR /JPEG
File type
PDF, PDF/A, JPG, TIFF, XPS
Scan features
Colour Scan integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once
Original recognition
Text, photo, text + photo, optimized for OCR
Max. scan size
A3/Ledger
Scan functionalities
Scan-to-email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN, WIA, WSD scan
Scan resolution
200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)
Scan speed
40 ipm (300 dpi, A4, b/w), 20 ipm (300 dpi, A4, colour)

Fax
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.0 seconds (Quick Scanning, Bitmap)
Transmission speed
Less than 3 sec.
Scanning density
Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales
Max. original size
A3/Ledger
Compression method
JBIG, MMR, MR, MH
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Interfaces
Standard interface
USB 2.0 (Hi-Speed), USB Host 2.0, Fast Ethernet 10/100/1000Base-TX, slot for optional print server, slot for optional CompactFlash®-Card

Warranty
Warranty
1-year warranty as standard. KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
